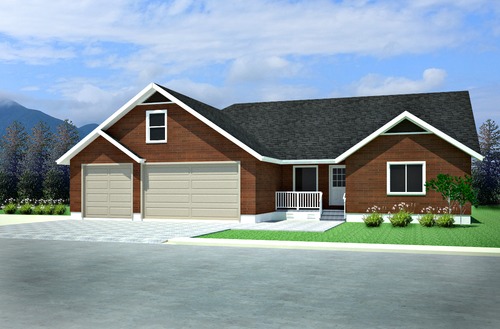

Ready to Download H103 Custom Home Design in both PDF and DWG files

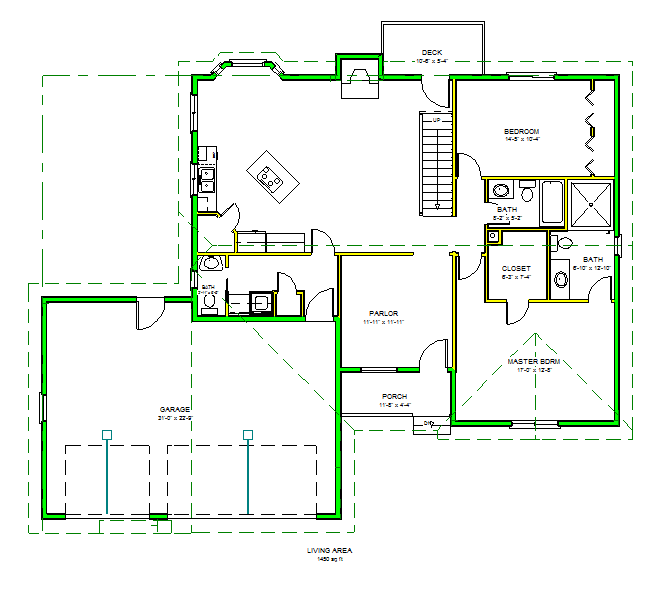

The Main Floor Plan

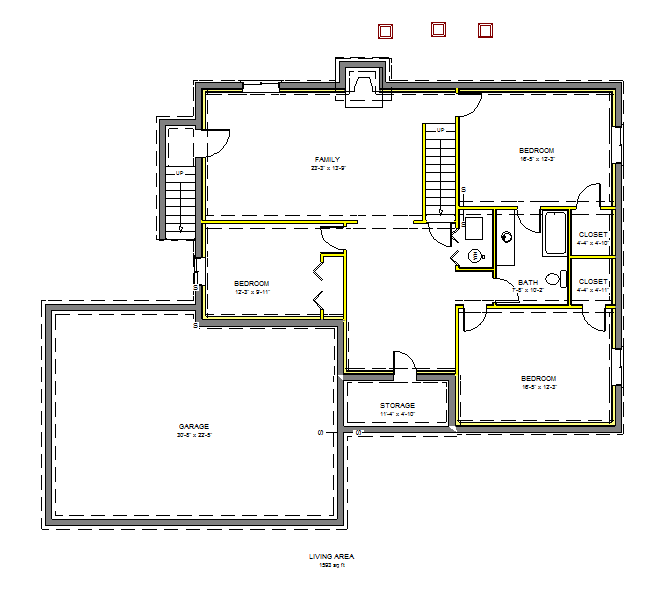

Basement Plan

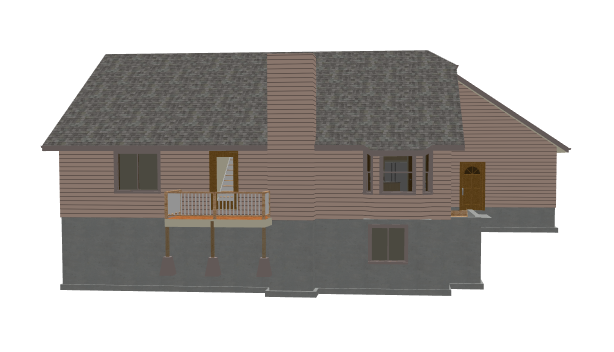

Back View

Available in DWG and PDF file.

This complete Plans Contains the following:

Page 1 Cover Page
Page 2 Main Floor Plan
Page 3 Basement Plan

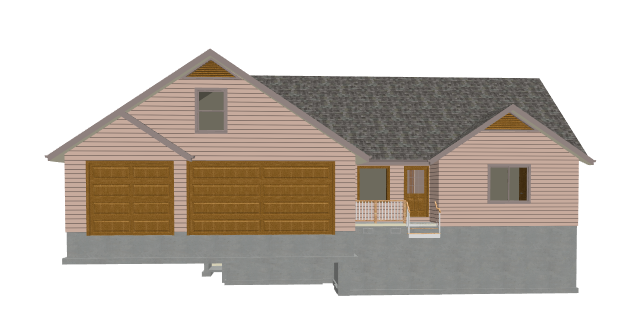

Page 4 Elevation Plan
Page 5 Typical Section Details
Page 6 Floor and Roof Framing Plan
Page 7 Whole House Section
Page 8 Cabinet & Stair Details
Page 9 Main Electrical
Page 10 Basement Electrical
Page 11 Misc Details
