Ready to Download H105 Custom Home Design in both PDF and DWG files

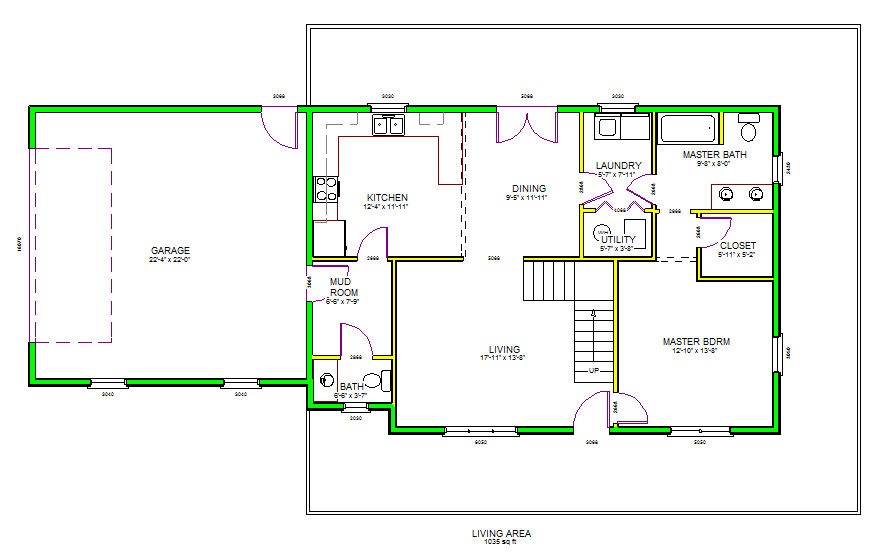

Main Floor Plan

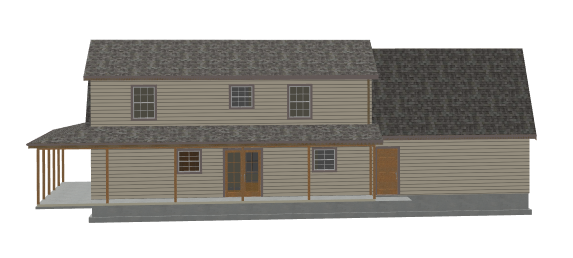

Back View

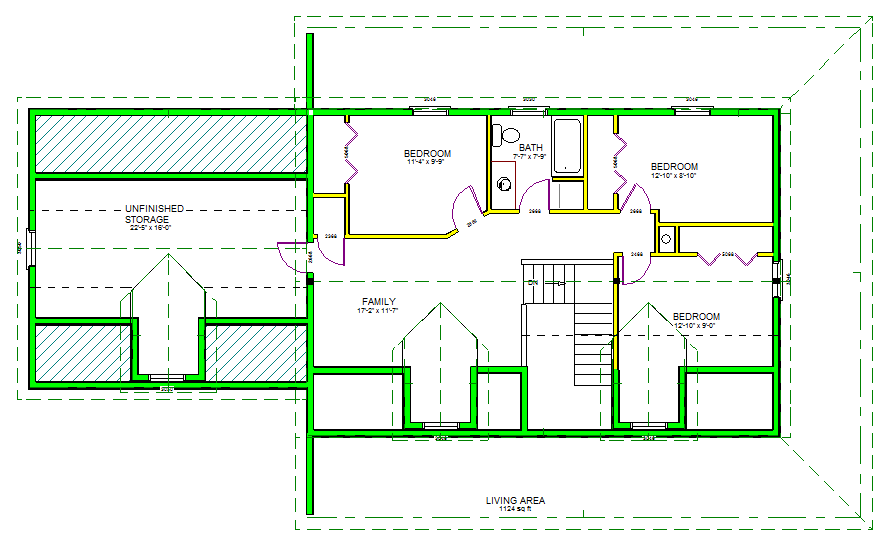

2nd Floor Plan
Available in DWG and PDF file.
This complete Plans Contains the following:
Page 1 Cover Page
Page 2 Main Floor Plan
Page 3 Foundation Plan
Page 4 Second Floor Plan
Page 5 Elevation Plan
Page 6 Floor and Roof Framing Plan
Page 7 Whole House Section
Page 8 Cabinet & Stair Detailsl
Page 9 Main Electrical
Page 10 Second Floor Electrical
Page 11 Roof Framing Plans
